TGP3100 Series Tour Map

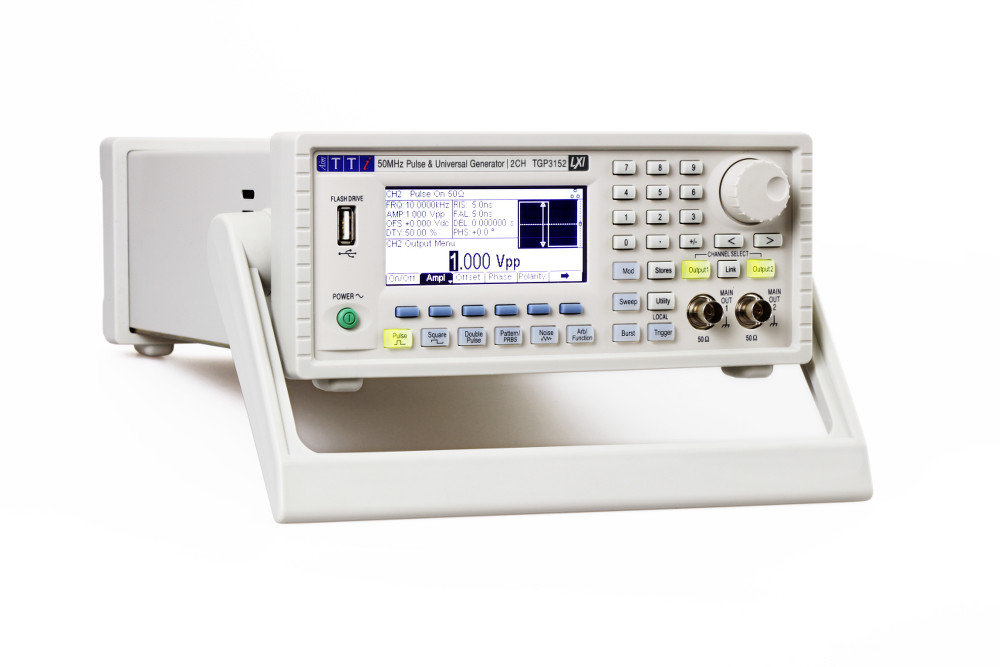

TGP3100 Series Pulse and Universal Generators: feature overview
- True Pulse Generation to 50MHz - highly capable pulse generation
with exceptional pulse precision and independently variable rise and fall times
- Full Function/Arbitrary Generator
- high performance arbitrary waveforms and a large range of standard waveforms
- High Output Level
- output amplifiers with high drive capability and switchable output impedance and attenuators
- Flexible Noise Generator
- highly configurable high performance noise generators
- Asynchronous operation
- Low Jitter asynchronous pulse operation with low jitter
- Pulse Modulations
- extensive pulse modulations, including with noise and jitter simulation and sweeps
- Pulse Trigger/Gate
- pulses can be triggered or gated from a variety of sources, external and internal
- Waveform Modulations
- Extensive internal and external waveform modulation
- Waveform Sweeps and Bursts
- Wide range frequency sweeps, burst and gated modes using internal or external triggering
- Waveform Manager Plus
- PC based waveform and pattern editing application
- Internal/USB Storage
- waveforms, patterns and set-ups can be stored within the instrument or using the front mounted USB socket
- Bus Interfaces
- including USB, LAN/LXI and GPIB with IVI, CVI and LV drivers
- External Phaselocking
- External frequency reference input and the ability to synchronize two generators
- 2 Channel Models
- with independent, coupled, tracking and relative phase offset operation
- Applications and Models
- application examples, including replacing older pulse generators, and the model range
