expands the tour into its own window (only visible when embedded in another page.)CPX Series DC Power Supplies: feature index
The CPX Series has some new and unique features that are well worth taking a look at.

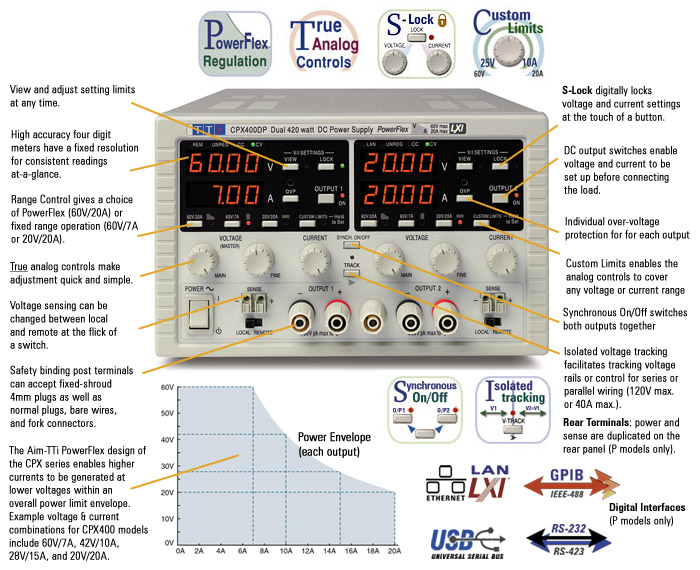

Note: the above illustration and power/current figures apply to the CPX400D/DP, but similar features apply to the CPX200D/DP and CPX400S models and are detailed on the specific web pages and in the PDF brochure.
Note: the above illustration and power/current figures apply to the CPX400D/DP, but similar features apply to the CPX200D/DP and CPX400S models and are detailed on the specific web pages and in the PDF brochure.
| PowerFlex | PowerFlex regulation - for maximum flexibility |
| Dual Outs | Two fully independent outputs (D models) |
| Precision | Low noise and good transient response |
| Tracking | Isolated voltage tracking for versatility (D models) |
| Control | True Analog controls - for ease of use |
| S-Lock | S-Lock function - instantly lock settings |
| Custom Limits | Custom Limits - set your exact requirements |
| Metering | Precision Metering - for reduced uncertainty |
| Automation | USB, RS232, LAN & optional GPIB interfaces (P Models) |
| Rear terminals | Duplicate rear terminals (P Models & CPX400SA) |
| Protection | Variable OVP and OCP trips |
| Compact | Compact design uses less bench/rack space |
| Views | DC output switches and "view limits" buttons |
| Linking | Synchronous switching of both outputs (D models) |
| Safety | Safety binding-post connection terminals |
| Sensing | Easy-switch remote or local voltage sensing |
| Analogue Control | Isolated Analog remote control (CPX400SA only) |
