TG251xA and TG501xA Series Tour Map
TGxA Series Function Generators: Bench or rack case
Bench-top Operation
The generators are highly compact
and use a minimum of bench space.

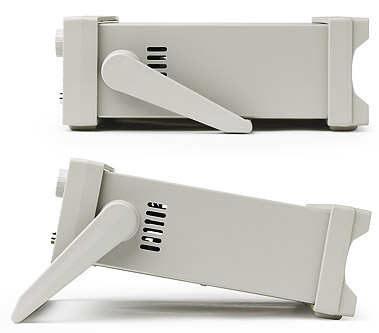

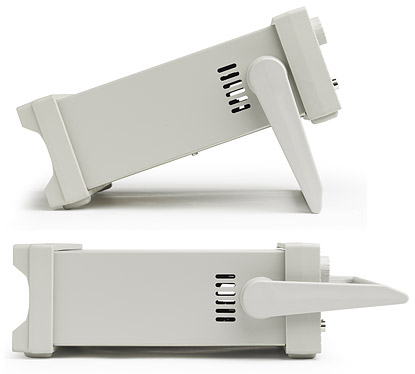

Protective surrounds guard against
knock damage and a multi-position stand angles the
instrument conveniently as well as providing a carry
handle.

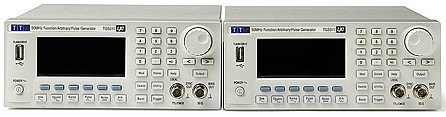

Rack Mounting
For system applications
the generators can be rack mounted.
With the protective surrounds and
handle removed the size is half rack width by 2U high.
A rack mounting kit is available
suitable for one or two instruments.
