MX Series DC Supplies - Precision Control

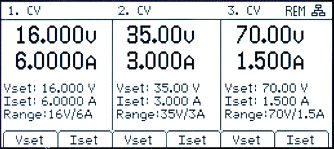

home screen

Up to 1mV and 0.1mA resolution

On the MX100T, Outputs 2 and 3 offer a setting resolution of 10mV and 1mA while output 1 provides a higher resolution of 1mV and 0.1mA right up to its maximum settings of 35V and 6A.

On the MX180T Outputs 1 and 2 offer a setting resolution of 1mV and 1mA (10mV resolution on the 120V range). Output 3 provides a resolution of 10mV and 10mA and retains the excellent line and load regulation.

On the MX100Q, outputs 1 and 2 offer 1mV setting resolution while outputs 3 and 4 resolution is 10mv in the 70V range. Current setting resolution is 0.1mA on all channels

On the MX103Q, all channels have 1mV and 0.1mA setting resolution.

These high resolutions are matched by high setting and read-back accuracy along with excellent line and load regulation.


jog wheel and keypad

Local or remote sensing

All outputs incorporate remote sense terminals that can be enabled or disabled at the flick of a switch.

Remote sensing is essential for maintaining precise regulation at the load and true metering of the load voltage

Many other power supplies omit remote sense, and quote regulation figures that could never be achieved in practice.
