MX Series DC Supplies - Numeric Entry and Rotary Control

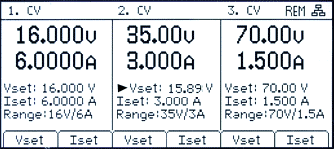

home screen

soft keys

Direct numeric entry

Settings can be made by direct numeric entry using the 0 to 9 keypad.

Each new setting is previewed on the display and is confirmed with the OK key before being actioned.

Numeric setting is very fast requiring only three key presses to set to 5 volts, for example, (Vset, 5, OK).

To set a more precise level such as 12.72 volts requires more key presses, but can still be done in seconds.

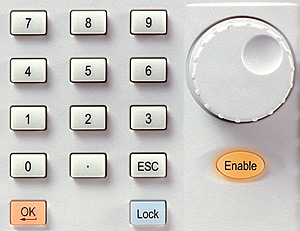

jog wheel and keypad

Continuous rotary control

Rotary control is available for applications where the voltage or current must be gradually or continuously changed.

The wheel has a speed sensitive action enabling single digit increments but allowing large changes to be made quickly when required.

The wheel function can be left permanently engaged or can be disabled at the touch of a button.
