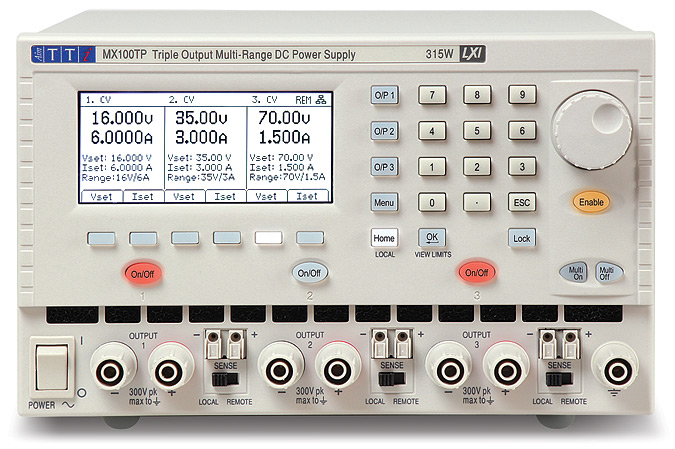

MX100T and MX100TP triple output laboratory power supplies

  • Three high performance outputs of 105 watts each 3 x (0 to 35V at 0 to 3A)
  • Total power of 315 watts in a highly compact package
  • Range switching gives up to 70 volts and up to 6 amps
  • Twelve range combinations for maximum flexibility
  • Up to 210 watts from a single output
  • Low output noise and ripple via linear final regulation
  • High setting resolution of 1mV and 0.1mA (output 1)
  • Variable OVP and OCP trips on all outputs
  • 50 setting memories per output + 50 linked memories
  • Selectable voltage tracking (isolated tracking)
  • Selectable current meter averaging
  • Switchable remote sense on all outputs
  • Graphic LCD provides simultaneous output metering
  • Numeric or spin-wheel control of all parameters
  • Individual or combined output on/off control with programmable delay sequencing.
  • Front panel locking with optional pass-code protection
  • 3U half-rack case for bench or rack mounting
  • RS-232, USB, LAN (LXI) and optional GPIB interfaces (MX100TP)
The MX100T differs from most other triple output power supplies in having three outputs of equal power, each with the ability to provide 0 to 35V at 0 to 3A.

Each output features simultaneous high resolution metering, switchable remote sense, and an individual output switch.

Mixed-mode regulation

To provide its impressive power density the MX series combines high frequency switch-mode pre-regulation with linear post-regulation to offer performance that comes close to that of an all-linear design.

Excellent line and load regulation is matched by low noise and good transient response.

Range switching and power control

range combination chart To increase its ability to match a variety of applications, each output has more than one range.

Outputs one and two can provide 16V/6A as an alternative to 35V/3A, while output three can provide 70V/1.5A.

When higher power is required, outputs two and three can be combined internally to provide up to 210 watts as either 35V/6A or 70V/3A from a single output.

Remote control for system applications

interfaces graphic The MX100TP incorporates USB, RS232 and LXI compliant LAN interfaces and GPIB is available as an option. These provide full remote control and read-back capabilities and are supported by an IVI driver for high level language applications. Duplicate power and sense terminals are incorporated at the rear.The compact half-rack 3U size uses  front input ventilation which enables vertical and horizontal stacking without the need for additional ventilation space. A 3U rack mount suitable for one or two units is available.
