Mixed Mode Multiple Output Programmable DC Power Supplies


MX Series Group Shot The MX Series represents a new generation of multiple output laboratory power supplies from Aim-TTi. Offering high power within a compact format they use ranged switched mixed-mode regulation with display and control via a backlit graphic LCD and soft keys. Every output has full functionality including fully variable voltage and current, CV/CI operation, individually switched output, and selectable remote sense.

There are three base models MX100T, MX180T and MX100Q. The 'T' suffix indicates a 'triple' output power supply and the 'Q' is a 'quad' output. Each is available as a remote programmable version, indicated by a P suffix (e.g., MX100TP). The 100 and 180 refer to the nominal channel power, however, because of power-sharing and range switching, the MX100T and MX100Q are capable of up to 210W from a single channel, and the MX180 360W.

MX100T & TP

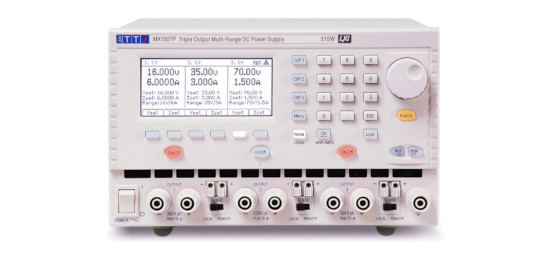

MX100TP
  • Three high performance outputs of 105 watts each 3 x (0 to 35V at 0 to 3A)
  • Total power of 315 watts in a highly compact package
  • Range switching gives up to 70 volts and up to 6 amps
  • Twelve range combinations for maximum flexibility
  • Up to 210 watts from a single output
  • Low output noise and ripple via linear final regulation
  • High setting resolution of 1mV and 0.1mA (output 1)
  • Variable OVP and OCP trips on all outputs
  • 50 setting memories per output + 50 linked memories
  • Selectable voltage tracking (isolated tracking)
  • Selectable current meter averaging
  • Switchable remote sense on all outputs
  • Graphic LCD provides simultaneous output metering
  • Numeric or spin-wheel control of all parameters
  • Individual or combined output on/off control with programmable delay sequencing.
  • Front panel locking with optional pass-code protection
  • 3U half-rack case for bench or rack mounting
  • GPIB, RS-232, USB and LAN (LXI) interfaces (MX100TP)
Find out more...

MX180T & TP

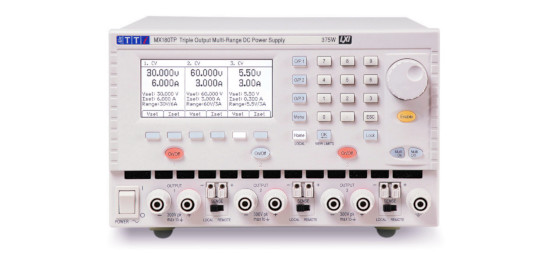

MX180TP
  • Three high performance outputs, two of 180 watts each and one of 18 watts
  • Total power of 378 watts in a highly compact package
  • Range switching gives up to 120 volts and up to 20 amps
  • Twenty one range combinations for maximum flexibility
  • Up to 360 watts from a single output
  • Low output noise and ripple via linear final regulation
  • High setting resolution of 1mV and 1mA
  • Variable OVP and OCP trips on all outputs
  • 50 setting memories per output + 50 linked memories
  • Selectable voltage tracking (isolated tracking)
  • Selectable current meter averaging
  • Switchable remote sense on all outputs
  • Graphic LCD provides simultaneous output metering
  • Numeric or spin-wheel control of all parameters
  • Individual or combined output on/off control with programmable delay sequencing.
  • Front panel locking with optional pass-code protection
  • 3U half-rack case for bench or rack mounting
  • GPIB, RS-232, USB and LAN (LXI) interfaces (MX180TP)
Find out more...

MX100Q & QP

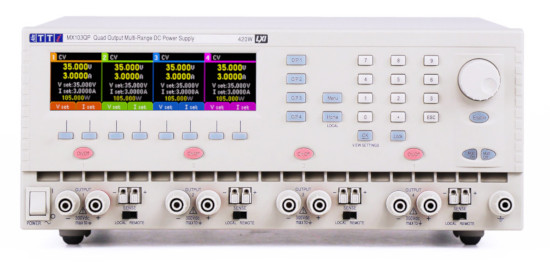

MX100QP
  • Four high performance outputs of 105W each
  • Total power of 420 watts in a highly compact package
  • Range switching gives up to 70 volts and up to 6 amps
  • Multiple range combinations for maximum flexibility
  • Up to 210 watts from a single output
  • Low output noise and ripple via linear final regulation
  • High setting resolution of 1mV and 1mA
  • Variable OVP and OCP trips on all outputs
  • 50 setting memories per output + 50 linked memories
  • Selectable voltage tracking (isolated tracking)
  • Selectable current meter averaging
  • Switchable remote sense on all outputs
  • Graphic LCD provides simultaneous output metering
  • LCD can be black on white or white on black (shown)
  • Numeric or spin-wheel control of all parameters
  • Individual or combined output on/off control with programmable delay sequencing.
  • Front panel locking with optional pass-code protection
  • 3U ¾-rack case for bench or rack mounting
  • RS-232, USB and LAN (LXI) interfaces (MX100QP), GPIB optional.
Find out more...
