PL Series DC Supplies: Rack Mounting

Rear Power and Sense terminals
On PL-P Series units, power and sense terminals are duplicated on the rear panel.

RM450 Rack Mount
Larger Image

Designed for Rack Mounting

The quarter-rack modular design of the PL and New PL-P series makes them ideally suited to rack mounting. Up to four single output units can be fitted into one rack width. Alternatively, any combination of singles and duals and triples can be used with a combined width of 4 units - as in the example shown.

Rear Power Terminals (PL-P)

Power and sense terminals are duplicated on the rear panel of the New PL-P Series for rack mount applications, or other situations where rear connection is more appropriate.

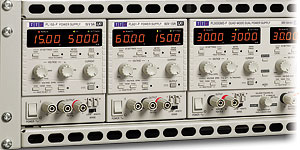

RM450 Rack Mount

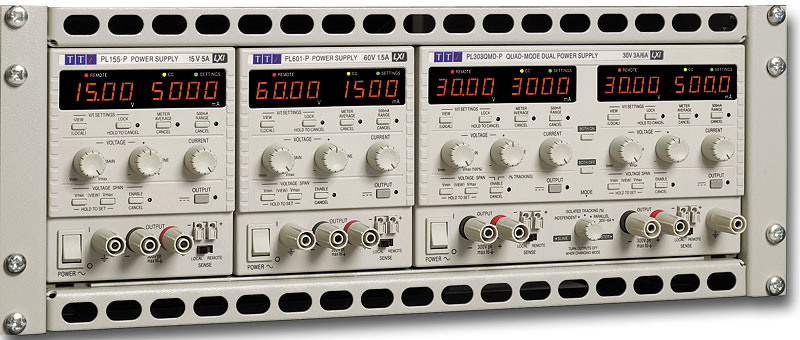

The RM450 rack mount can accommodate up to four single output units, two dual output units, a single output unit and a triple output unit or a combination (as shown). Blanking plates are provided for unused positions. The RM450 is 4U high and incorporates limited ventilation space above and below the power supplies.
