PL-P Series DC Supplies: Analogue Remote Control
* Note that analogue in/out and remote on/off are not fitted to the PL303QMD-P.
Analogue Remote Control (Single output models only)

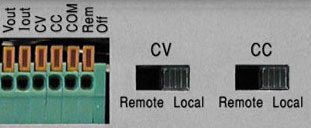

Single output PL-P units include non-isolated analogue voltage control of voltage and current using
a 0V to 5V or 0V to 10V signal.
Analogue control outputs are also incorporated to enable easy
parallel connection of multiple units in a master-slave
configuration.
Remote On/Off (Single output models only)
A terminal for remote on/off control is
also provided. This can be operated using a TTL/CMOS control
signal, or using a relay.
Parallel Connection
Single output units can be connected
together in a parallel configuration by connecting Vout and Iout
on the Master unit to CV and CC on the Slave units.
Thus, for example, four PL155-P power
supplies could be parallel connected to provide currents up to
20 amps.
