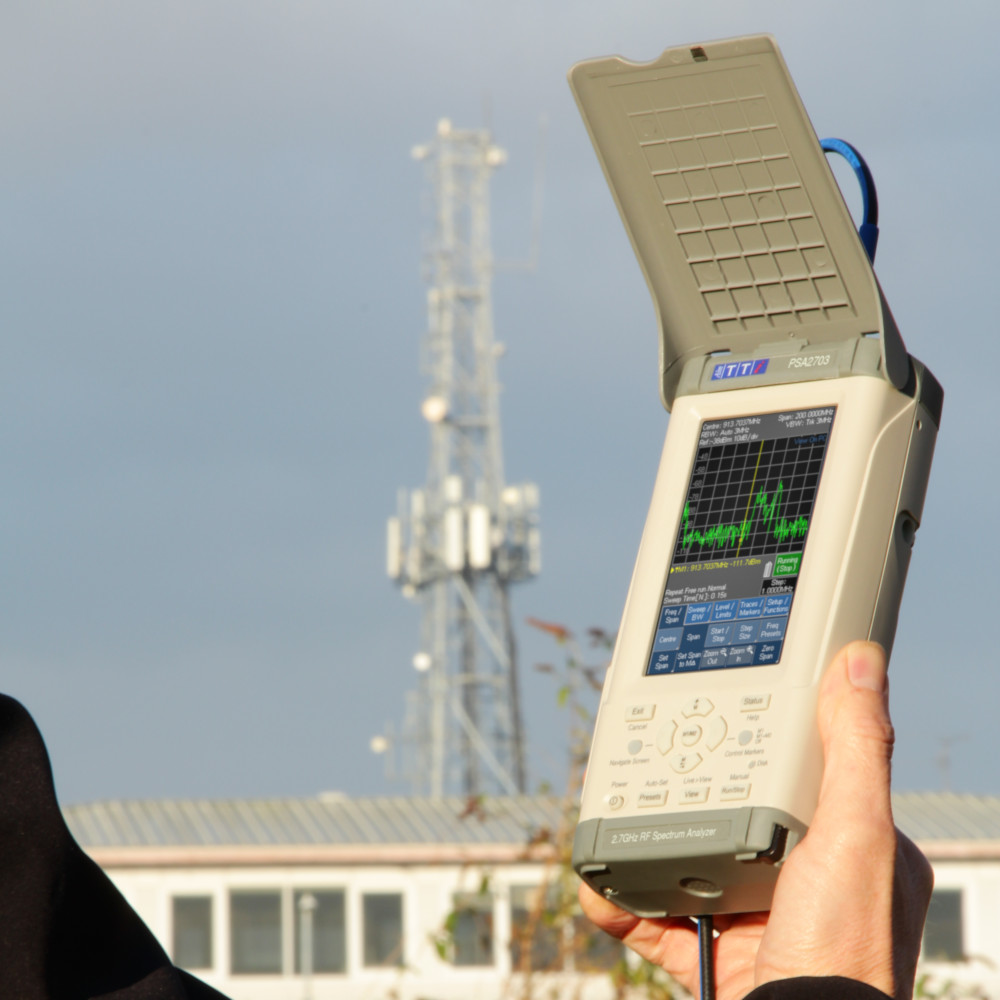

PSA Series 3

Handheld RF Spectrum Analyzer with 1MHz to 1.3 or 2.7GHz bandwidth options

True handheld battery powered RF spectrum analyzers

  • 1MHz to 1300MHz or 2700MHz frequency range
  • Resolution bandwidths of 300Hz to 10MHz 1:3:10
  • -115dBm typical noise floor at -40dBm reference level
  • Measurement in dBm or dBμV, mV or μW
  • Zero span mode with AM and FM audio demodulation
  • Trace modes of normal, peak hold and trace average
  • Live, View (copy) and Reference traces in contrasting colours
  • Twin markers with readout of absolute & difference values
  • Smart marker movement with selectable peak tracking
  • Frequency counter with 10Hz Resolution
  • Frequency presets and independent state storage
  • Auto-find automatically sets sweep parameters for the highest signal found
  • Unlimited storage for waveforms, set-ups and screens
  • User assignable file names, file stamping from real-time clock
  • USB interfaces for Flash drives and PC connection
  • Comprehensive status and context sensitive help screens
  • Up to 6 hours continuous battery operation from a charge
  • Smaller and lighter than other spectrum analyzers (weight only 0.58 kg)

    OPTION U01 ADDS:
  • Limit lines and limit patterns with limits comparator
  • Data logging of peak values, complete traces or screen images from timer, external trigger or limits comparator
  • Sweep triggering from external trigger or limits comparator
  • Compensation tables, fixed offsets and 75 Ohm compensation
Datasheet - (PDF / English)

Product Tabs

Product

Model Price
Aim-TTi PSA1303 1.3GHz Handheld RF spectrum analyzer

PSA1303

Handheld RF Spectrum Analyzer 1.3GHz
1 212,00 €
Aim-TTi PSA1303USC 1.3 GHz Handheld spectrum analyzer kit

PSA1303USC

Handheld RF Spectrum Analyzer 1.3GHz, with Option U01, Case and Accessories
1 404,00 €
Aim-TTi PSA2703 2.7GHz Handheld RF spectrum analyzer

PSA2703

Handheld RF Spectrum Analyzer 2.7GHz
1 512,00 €
Aim-TTi PSA2703USC Handheld spectrum analyzer kit

PSA2703USC

Handheld RF Spectrum Analyzer 2.7GHz, with Option U01, Case and Accessories
1 644,00 €

Options

Model Price
PSA U01 Option
PSA Series 2 and 3 Features Upgrade
150,00 €

Accessories

Model Price
PSA-VC
Vehicle Charger (12V/24V) for PSA series spectrum analyzers
25,00 €
PSA-ANT2
Wideband telescopic antenna SMA/N/BNC
44,00 €
PSA-SC2
Travel case for PSA Series 2, 3 or 5 Spectrum analyzer.
94,00 €
PSA-CK
Cable and Connector Kit for PSA series spectrum analyzers
75,00 €
