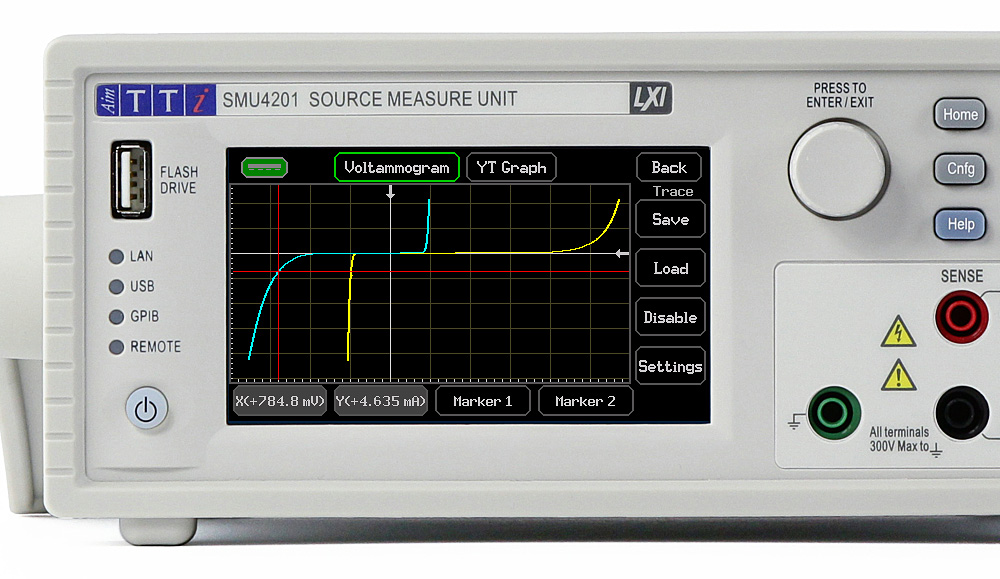

SMU4000 Series

Source Measure Unit with 20 and 200V versions

  • 4-quadrant Source, Sink & Measure
  • 0.015% basic accuracy with 6½ digit resolution.
  • Sense terminals for 4 wire operation and guard capabilities
  • PowerFlex technology: up to ±210V, up to ±3.15A (SMU4201) or up to ±21V, up to ±3.15A (SMU4001),  25W power envelope.
  • 0.1µV & 100fA resolution
  • Fast measurement speeds up to 200µs (5k/s)
  • Continuous or pulsed high speed outputs with Linear/Log or arbitrary list sweeps
  • Compact size
  • Internal memory, up to 100k measurements, up to 100k steps
  • ‘SMU Link’ allows two SMUs to be linked together for synchronous operation (optional accessory)
  • Full control of multiple units with Test Bridge SMU Windows software (free download)
Datasheet - (PDF / English)

Product Tabs

Model Price
Aim-TTi SMU4001


Source Measure Unit ±20V
3 599,00 €
Aim-TTi SMU4201


Source Measure Unit ±200V
4 735,00 €
Model Price
GPIB Interface Kit
140,00 €
Model Price
SMU Link
Links two SMU4000 Series together
126,00 €
2U Rack Mount for half-rack width instruments, includes 1/2 width blanking plate
164,00 €
