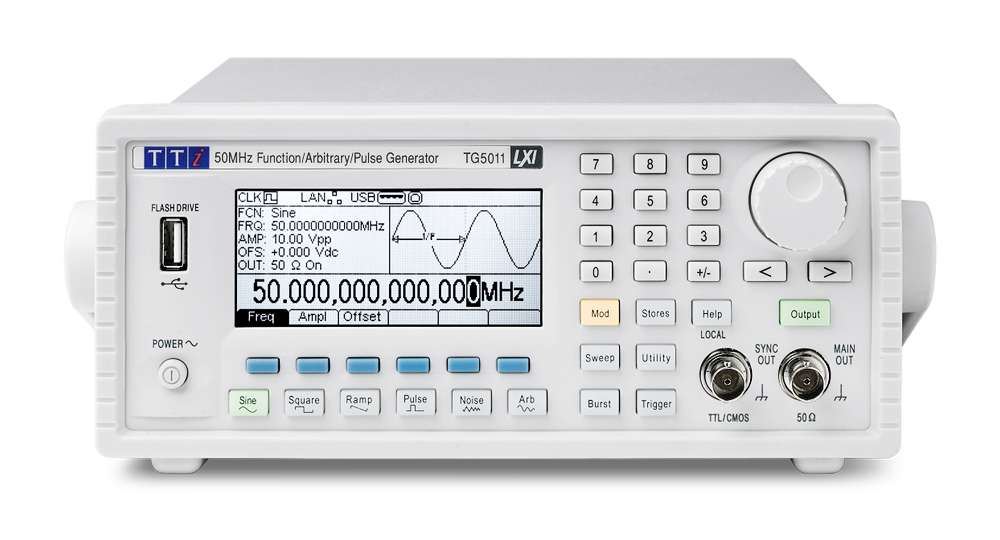

TG251xA/501xA Series
High Performance Function/Arbitrary/Pulse Generator 25MHz or 50MHz, 1 or 2 Channels
- One or two channels
- 0.001mHz to 50MHz/25MHz range; 14 digits or 1uHz resolution.
- Standard waveforms include sine, square, ramp, pulse, sin(x)/x, noise, exponential, logarithmic and PRBS.
- True pulse generator with variable delay and variable rise/fall.
- Arbitrary waveforms of up to 128K points at up to 125MS/s.
- Waveform storage using USB flash drives.
- Large graphic LCD with simultaneous text and waveform display.
- Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum and PRBS.
- 20mV to 20V pk-pk output from 50Ohms ; plus multi function aux. out.
- Storage for multiple instrument set-ups in non-volatile memory.
- Waveform Manager Plus for Windows software included.
- Programmable via USB and LAN (LXI) interfaces; GPIB optional.
Datasheet - (PDF / English) See Also
 |
Dual Channel Arbitrary Function Generator |
Product Tabs
| Model | Price | ||
|---|---|---|---|
 |
TG2511AHigh Performance Function/Arbitrary/Pulse Generator 25MHz, One Channel |
844,00 € |
|
 |
TG5011AHigh Performance Function/Arbitrary/Pulse Generator 50MHz, One Channel |
928,00 € |
|
 |
TG2512AHigh Performance Function/Arbitrary/Pulse Generator 25MHz, Two Channel |
1 008,00 € |
|
 |
TG5012AHigh Performance Function/Arbitrary/Pulse Generator 50MHz, Two Channel |
1 180,00 € |
| Model | Price | |
|---|---|---|
|
GPIB 1A |
148,00 € |
| Model | Price | |
|---|---|---|
|
RM200A |
169,00 € |
| TGxA Function Generators Product Tour - (HTML / English) |
| TG501xA and TG251xA Firmware Update V1.16 - (ZIP / English) |
| Connecting over LAN with NI-VISA - (PDF / English) |
| TG251xA & 501xA series function generators data sheet - Issue 4 - (PDF / English) |
| Function Generator Selection Guide - Aim-TTi - (PDF / English) |
| LXI discovery tool - (ZIP / English) |
| Waveform Manager Plus V4.14 - (ZIP / English) |
