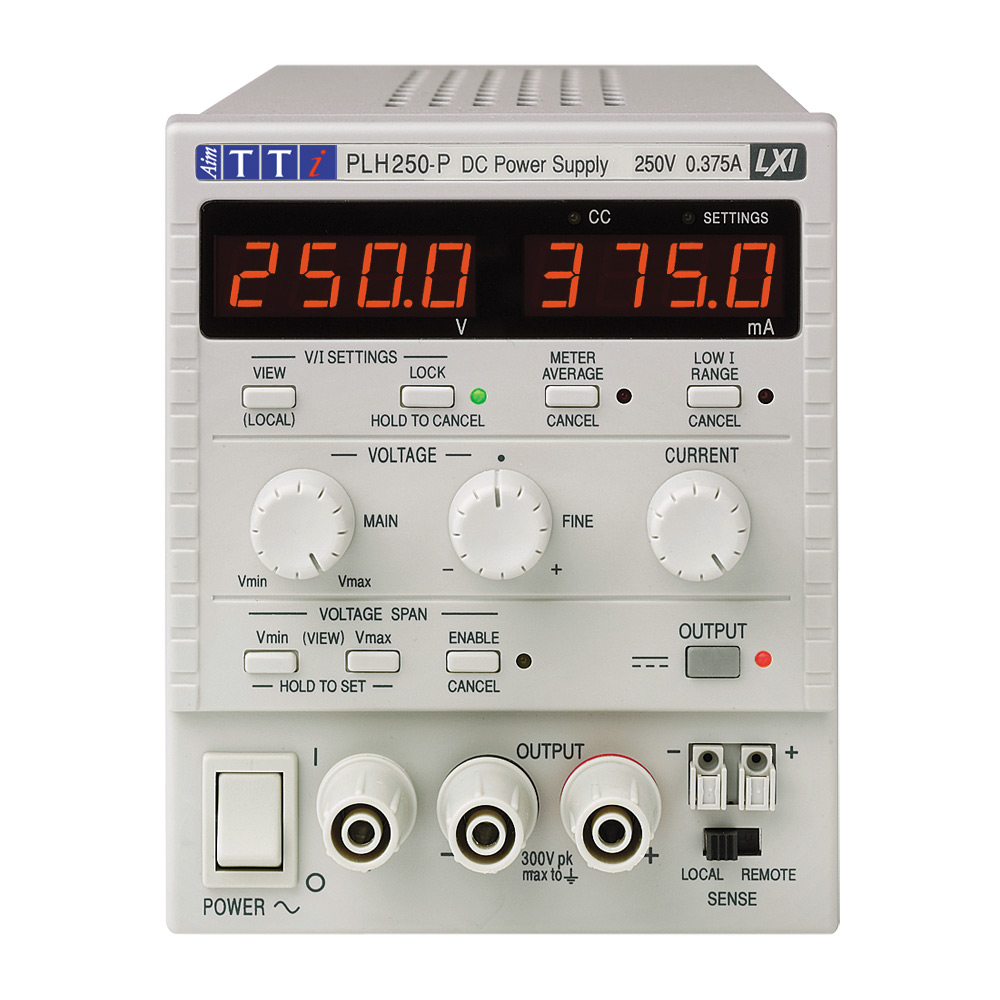

PLH Series

Bench/System Higher Voltage DC Power Supply, Linear Regulation Single Output 90 watts, 120V or 250V, with/without Remote Interfaces

Single output 120V 90W or 250V 94W
Linear regulation - for the best performance
Ultra-compact design - uses up less space
True Analogue controls - for ease of use
S-Lock function - instantly lock settings
V-Span function - customize the voltage range
Low current range and current meter averaging
DC output switches and "view limits" button
Selectable remote sense terminals

P versions add:

Full digital remote control and readback
RS-232, USB and LAN (Ethernet), GPIB optional
LAN Interface conforms with LXI standard
IVI Driver supplied
Interfaces are opto-isolated from outputs
Isolated Analogue remote control of V and I
Front and rear terminals

PLH Series Product Tour

PLH and PLH-P series DC power supplies data sheet - (PDF / English)

Product Tabs

Product

Model	Price
PLH120 Bench/System Higher Voltage DC Power Supply, Linear Regulation 120V/0.75A, No Interfaces	425,00 €	Quantity
PLH250 Bench/System Higher Voltage DC Power Supply, Linear Regulation 250V/0.375A, No Interfaces	470,00 €	Quantity
PLH120-P Bench/System Higher Voltage DC Power Supply, Linear Regulation 120V/0.75A, Isolated Analog, USB, RS232 & LAN Interfaces (GPIB option)	629,00 €	Quantity
PLH250-P Bench/System Higher Voltage DC Power Supply, Linear Regulation 250V/0.375A, Isolated Analog, USB, RS232 & LAN Interfaces (GPIB option)	672,00 €	Quantity

Options

Model	Price
PL Option-G GPIB Interface Option	71,00 €	Quantity

Accessories

Model	Price
RM460 4U Rack Mount for CPX, MX, QPX and PL/PLH Series 3U PSUs.	140,00 €	Quantity

Resources

Product Tours
PLH Series DC Power Supplies Product Tour - (HTML / English)

Firmware Files
PL and PLH series firmware, single and dual output models (V4.06) - (HEX / English)

Drivers
USB Driver V2.11 - (ZIP / English)

Drawings
PL-P and PLH-P Series Single Output Power Supplies Mechanical Drawing - (PDF / English)

Catalogues
AIM-TTi Power Supplies summary catalogue 2020 - (PDF / English)

Datasheets
PLH and PLH-P series DC power supplies data sheet - (PDF / English)

Manuals
PLH & PLH-P Instruction Manual - Issue 10 - (PDF / English)
PLH & PLH-P Series Bedienungsanleitung auf Deutsch - Issue 10 - (PDF / German)
PLH & PLH-P Series Instrucciones en Espanol - Issue 10 - (PDF / Spanish)
PLH & PLH-P Series Instructions en Francais - Issue 10 - (PDF / French)
PLH & PLH-P Series Istruzioni in Italiano - Issue 10 - (PDF / Italian)

Software / Apps
Firmware Flash update utility - (ZIP / English)
LXI discovery tool - (ZIP / English)
