SMU4000 Series Feature Overview

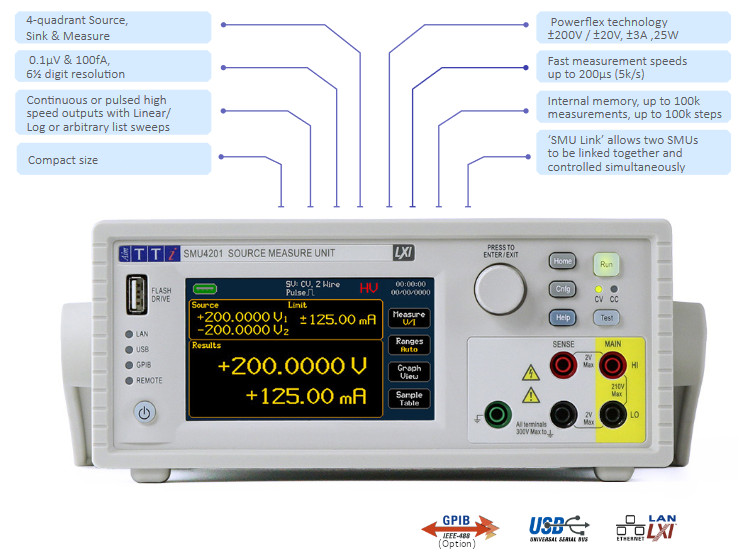

SMU4000 Series features

  • PowerFlex technology achieves full instrument output power across the majority of the voltage range.
  • 0.015% basic accuracy with 6½ digit resolution.
  • High speed, low glitch auto ranging capability.
  • Sense terminals for 4 wire operation
  • Driven guard terminals
  • User friendly front panel touchscreen GUI with on screen numeric or graphical results.
  • Internally calculated resistance and power measurements.
  • User settable bipolar compliance limits.
  • Variable slew rate control.
  • High voltage safety interlock, user interface password protected, rear panel interlock control.
  • Quiet operation.
  • Context sensitive help button.
  • Advanced sweep engine.
  • Advanced mathematical features for data handling.
  • Tolerance band result sorting.
  • Advanced load modes (LC, LR & LP) with integral voltage dropout setting.
  • Advanced sequencing mode.
  • SCPI compliant digital remote interfaces.
  • ‘SMU-Link’ Link two SMUs together to perform simultaneously via a handshake triggering system.
  • Advanced global triggering available via external DIO and remote commands
  • Test Bridge SMU Windows® software - free download
