SMU4000 Series compact form factor

Bench-top Operation

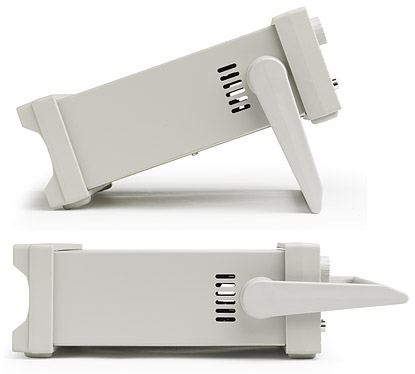

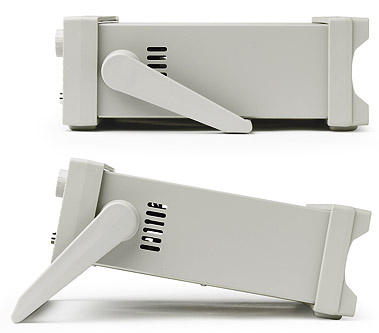

The SMU4000 series use a minimum of bench space. Protective surrounds guard against knock damage and a multi-position stand angles the instrument conveniently as well as providing a carry handle.*

The footprint of the SMU4000 case is about the same as a sheet of A4 paper (214mm wide by 269mm deep). It is 2U/86.5mm high, half rack width and weighs under 4.5kg.

Rack Mounting

For system applications the SMU4000 Series can be rack mounted. With the protective surrounds and handle removed the size is half rack width by 2U high. One or two units can fit in the optional RM200A 2U rack kit (which includes a half width blanking panel).

*Note: the images of the side of the case show a TG Series Function generator which uses the same case but has different front panel connections and encoder.
