EL-R/EX-R Series Tour Map
EX-R Series: Mixed-mode Regulated Precision DC Bench Power Supplies
Power, Precision, Simplicity
The EX-R series offers higher precision whilst retaining the simplicity of operation which many
bench-top power supply users prefer, adding four digit meters and switchable remote sensing.
Six models are offered including single, dual and triple outputs and
covering a power range of 175 watts up to 420 watts.
Models
Model
Output 1
Output 2
Output 3
Power
EX355R
35V/5A
175W
EX1810R
18V/10A
180W
EX2020R
20V/20A
400W
EX4210R
42V/10A
420W
EX354RD
35V/4A
35V/4A
280W

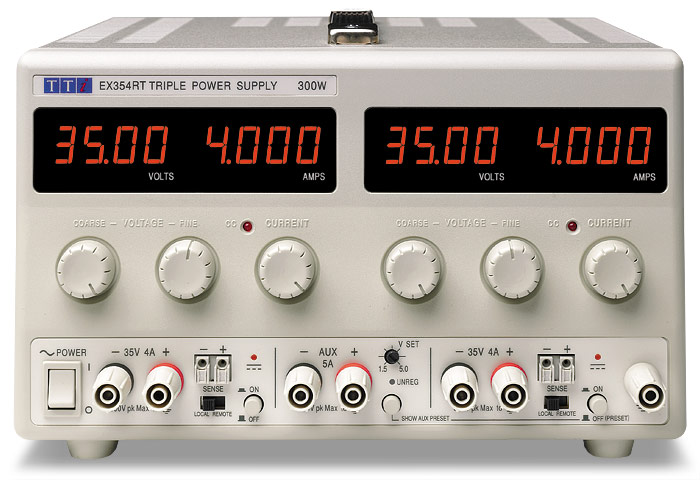

EX354RT
35V/4A
35V/4A
1.5 - 5V/ 5 A
305 W
Features
Specs EX-R series specifications
Regulation Find out more about EX-R mixed-mode output regulation
Metering Find out more about EX-R series metering
Outputs Find out more about the outputs and controls
