PL and PL-P series Tour Map
PL Series DC Supplies: Linear Regulation
Best overall performance
Despite the improvements in high frequency switcher design, linear regulation still offers the lowest
output noise and the best transient response (recovery time from
a sudden current step).
It also offers the most benign stability
characteristics when driving complex load conditions.

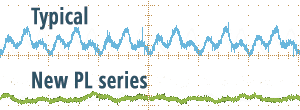

Ultra-low noise
Most linear regulated power supplies offer
low output noise with figures below 2mV rms being typical.
The New PL series goes a stage further with
an RMS noise figure of 0.4mV and tightly specified pk-pk noise
and common-mode current figures.
